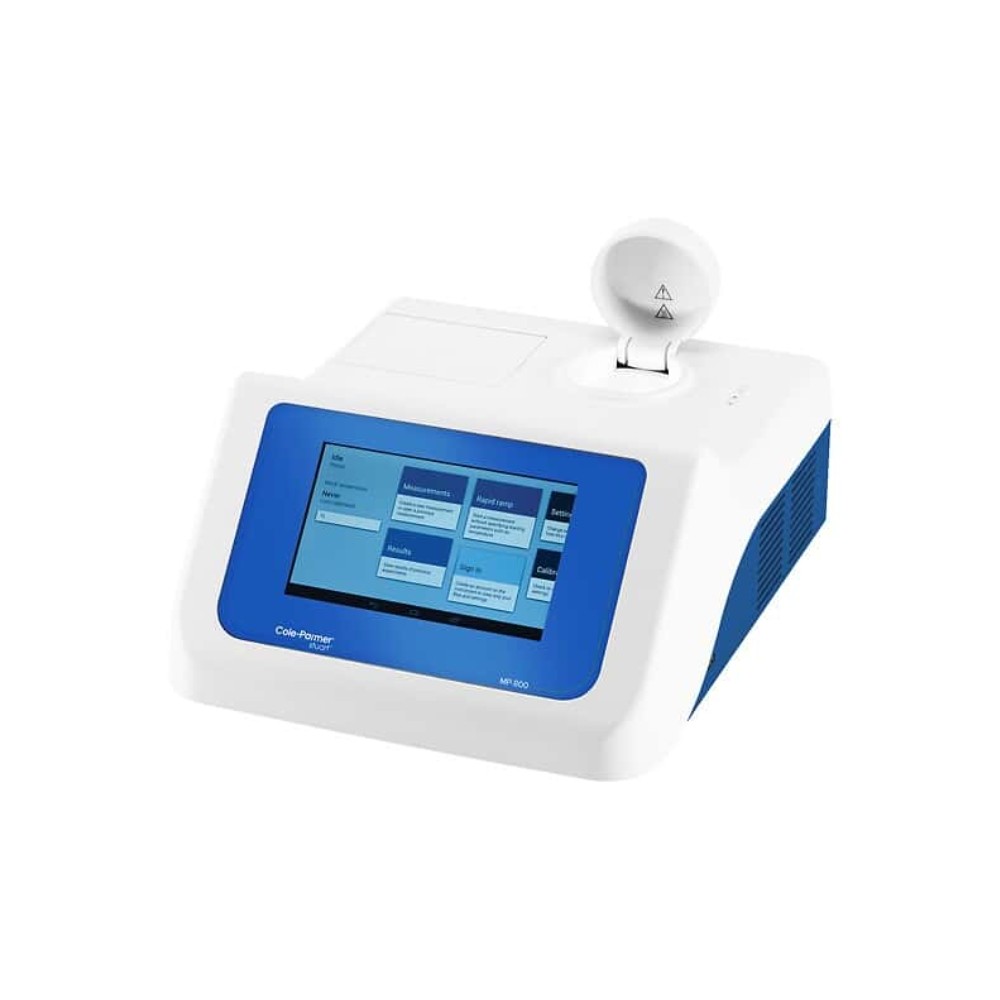

Cole-Parmer MP-800D Automatic Digital Melting Point Apparatus, 400°C Max Temperature

Basic characteristic

Automatic Digital Melting Point Apparatus

Advanced features with a familiar interface make this the ideal melting point apparatus for your pharmaceutical, raw material, and quality control applications. Setup is easy using the intuitive menu system, based on an Android™ platform. Take measurements, view results, save programs, set up user sign-ins, and more!

Unsure of the melt temperature? Use the rapid ramp mode to take a fast scan of the full temperature range. Watch the melt on the large 7" (17.8 cm) touch-screen display, or set the unit up and walk away and view a video of the melt later. Download videos and reports to a USB flash drive or use the optional printer for direct printing of results. Stored video results include a temperature stamp of the captured melt temperature.

Storage compartment for unused capillaries includes a glass cutter to open capillaries that are closed on both ends. There is also an area to hold three prepared sample capillaries safely away from the heat source.

Includes:
Glass capillaries and power cord.

Key Features:

Accurately identify the melting point with advanced digital image processing
Get up and running quickly—intuitive setup and navigation on large 7” color touch screen
Increase productivity—analyze three samples simultaneously
8 GB storage holds approximately 300 melt files including videos
Set ramp rate from 0.1 to 20°C in 0.1°C increment
Conforms to US Pharmacopeia (USP) and GLP requirements

Technical specification

Number of Samples	3
Min Temperature	Ambient
Max Temperature (° C)	400
Temperature Resolution	0.1°C
Heat-Up Time	approximately 6 mins from 50 to 350°C
Temperature Sensor	1000Ω Pt RTD
Interface	USB, for flash drive
Display	7" high-definition color
Height (in)	14 3/16
Depth (in)	6 7/16
Width (in)	11 3/4
Height (cm)	36
Depth (cm)	16.4
Width (cm)	30
Power (VAC)	120 / 230
Power (Hz)	50/60
Description	Automatic Digital Melting Point Apparatus
