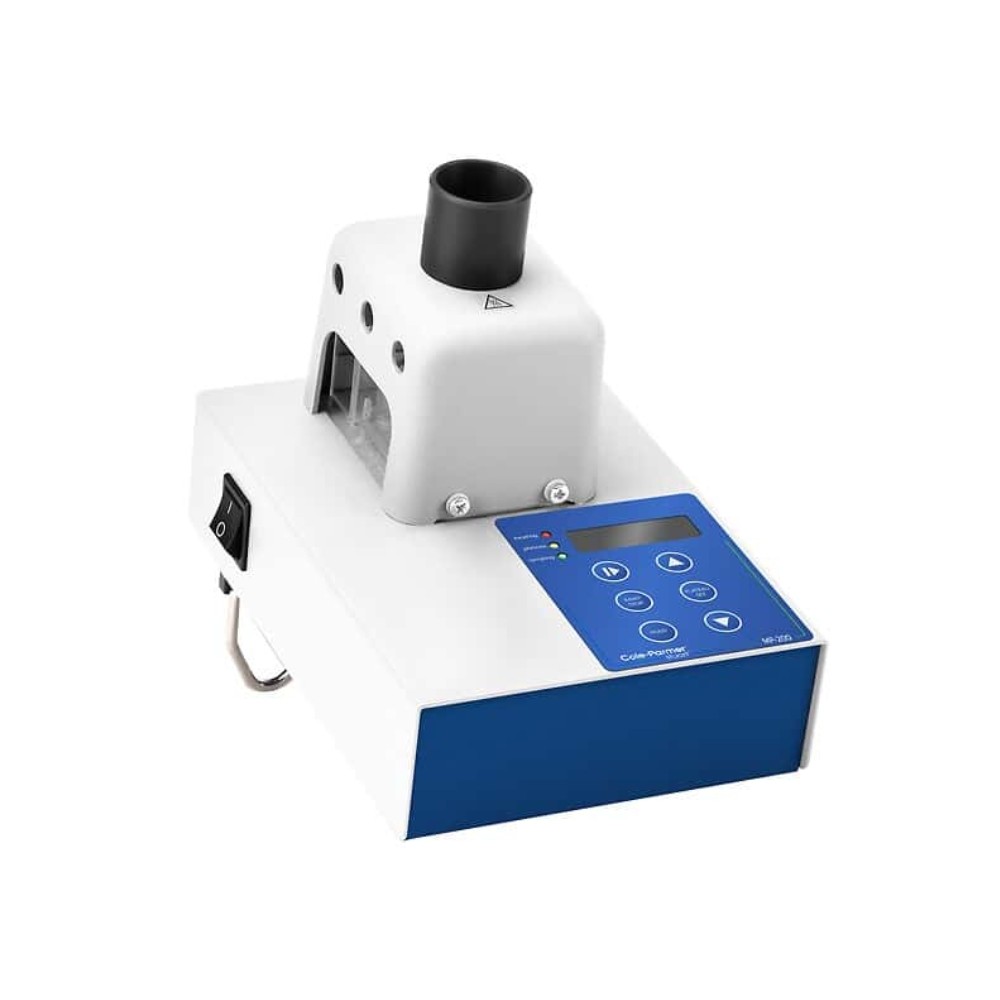

Cole-Parmer MP-200D-HR High-Resolution Digital Melting Point Apparatus

Basic characteristic

High Resolution Digital Melting Point Apparatus, 230 V

Designed for maximum safety and ease of use. Select, measure, and display the temperature digitally, ensuring accuracy and avoiding the need for a glass thermometer. Test two samples simultaneously, viewing the melt via a magnifying lens with built-in illumination. Extend the back feet for the optimal viewing angle.

Set a plateau temperature for initial warm-up—unattended warm-up time frees up the user until the plateau temperature is reached. After warm-up, heating rate continues slowly reaching the melt temperature for greater accuracy.

Includes:
Pack of 100 capillary tubes (open at one end).

Key Features:

Select, measure, and display the temperature digitally, ensuring accuracy and repeatability
Easily view the melt via magnifying lens with built-in illumination
Be more productive—test two samples simultaneously
Save time by setting a plateau temperature for initial warm-up
Maximum temperature of 300°C with 0.1° resolution
Adjustable ramp rate between 1 and 10°C/min after initial warm-up
230 VAC operation

Technical specification

Max Temperature (° F)	572
Min Temperature	Ambient
Max Temperature (° C)	300
Temperature Accuracy	±1.0⁰C to 20⁰C; ±2.5⁰C at 300⁰C
Temperature Resolution	0.1°C
Heat-Up Time	20°C / minute to plateau; 1 and 10°C/min to melt
Temperature Sensor	100Ω Pt RTD
Display	4-digital LED
Height (in)	6 5/8
Depth (in)	8 5/8
Width (in)	6 1/4
Height (cm)	17
Depth (cm)	22
Width (cm)	16
Power (VAC)	230
Power (Hz)	50
Power (watts)	75
Description	High Resolution Digital Melting Point Apparatus, 230 V
