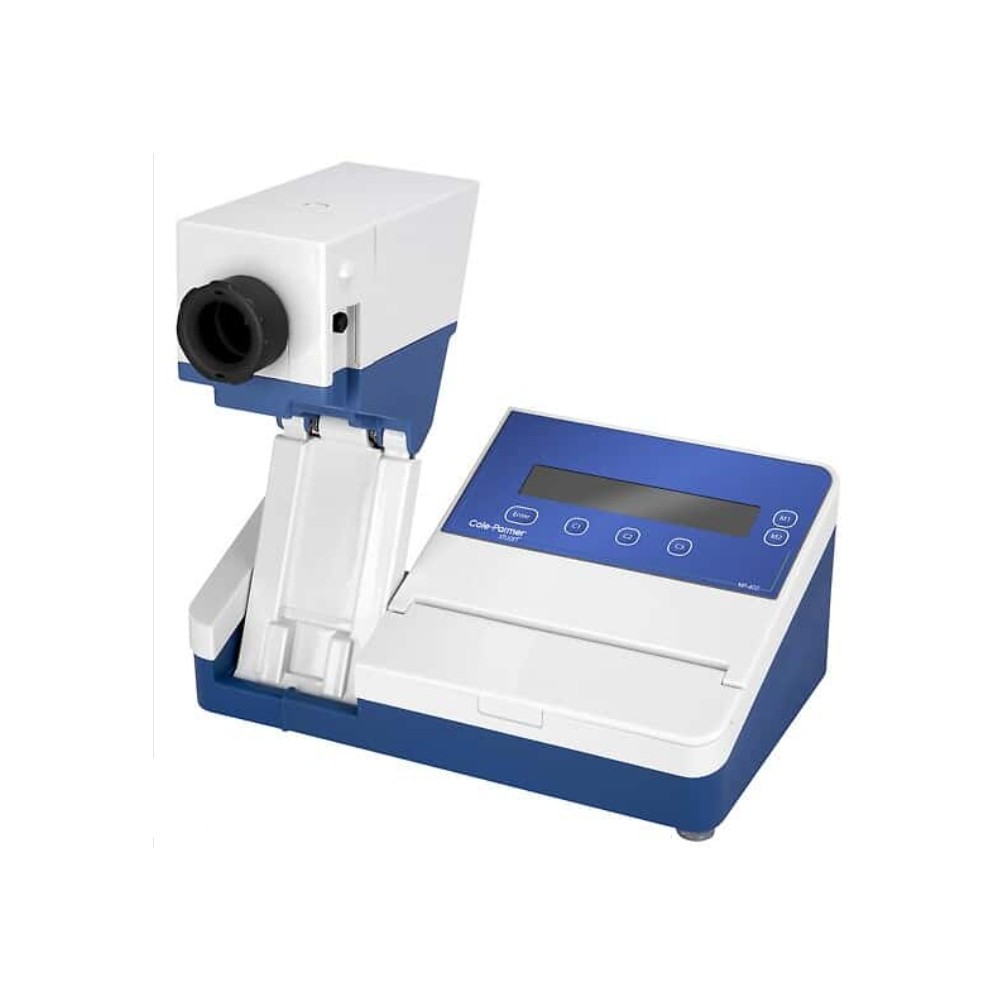

Cole-Parmer MP-400D High-Temperature, High-Resolution Digital Melting Point Apparatus; 115/230 VAC

Basic characteristic

High-Temperature, High-Resolution Digital Melting Point Apparatus; 115/230 VAC

Select, measure, and display the temperature digitally, ensuring accuracy and avoiding the need for a glass thermometer. Test three samples simultaneously, viewing the melt via a magnifying lens with built-in illumination. Set a plateau temperature for initial warm-up—unattended warm-up time frees up the user until the plateau temperature is reached. Heating rate continues slowly between 0.5 and 10°C after the warm-up, slowly reaching the melt temperature for greater accuracy.

Save and recall up to seven temperatures per capillary. Three methods can be stored and repeated. Use the 5-pin mini DIN socket to connect to a printer (order separately). Adjust the viewing head two ways for better viewing and user comfort. The head can be moved forwards/backwards as well as tilted up to 126°. A convenient capillary storage compartment comes with a glass capillary cutter. Full access to the block allows for easy cleaning.

Includes:
Pack of 100 capillary tubes (open at one end).

Key Features:

Be more productive—test three samples simultaneously
Maximum temperature of 400°C with 0.1° resolution
Variable ramp rate between 0.5 and 10°C in 0.1°C increments after initial warm-up
Easily view the melt via magnifying lens with built-in illumination
Save up to seven temperature readings per capillary
Two-stage head adjustment offers user comfort
Dual voltage operation for universal use

Technical specification

Max Temperature (° F)	752
Min Temperature	Ambient
Max Temperature (° C)	400
Temperature Accuracy	±0.5⁰C to 50⁰C
Temperature Resolution	0.1°C
Heat-Up Time	50 to 350⁰C in 6 minutes
Temperature Sensor	1000Ω Pt RTD
Display	Multiline alphanumeric LCD, backlit, date/time
Height (in)	6 11/16
Depth (in)	7 7/8
Width (in)	12 13/16
Height (cm)	17
Depth (cm)	20
Width (cm)	32.5
Power (VAC)	115 / 230;220
Power (Hz)	50/60
Power (watts)	81
Description	High-Temperature, High-Resolution Digital Melting Point Apparatus; 115/230 VAC
